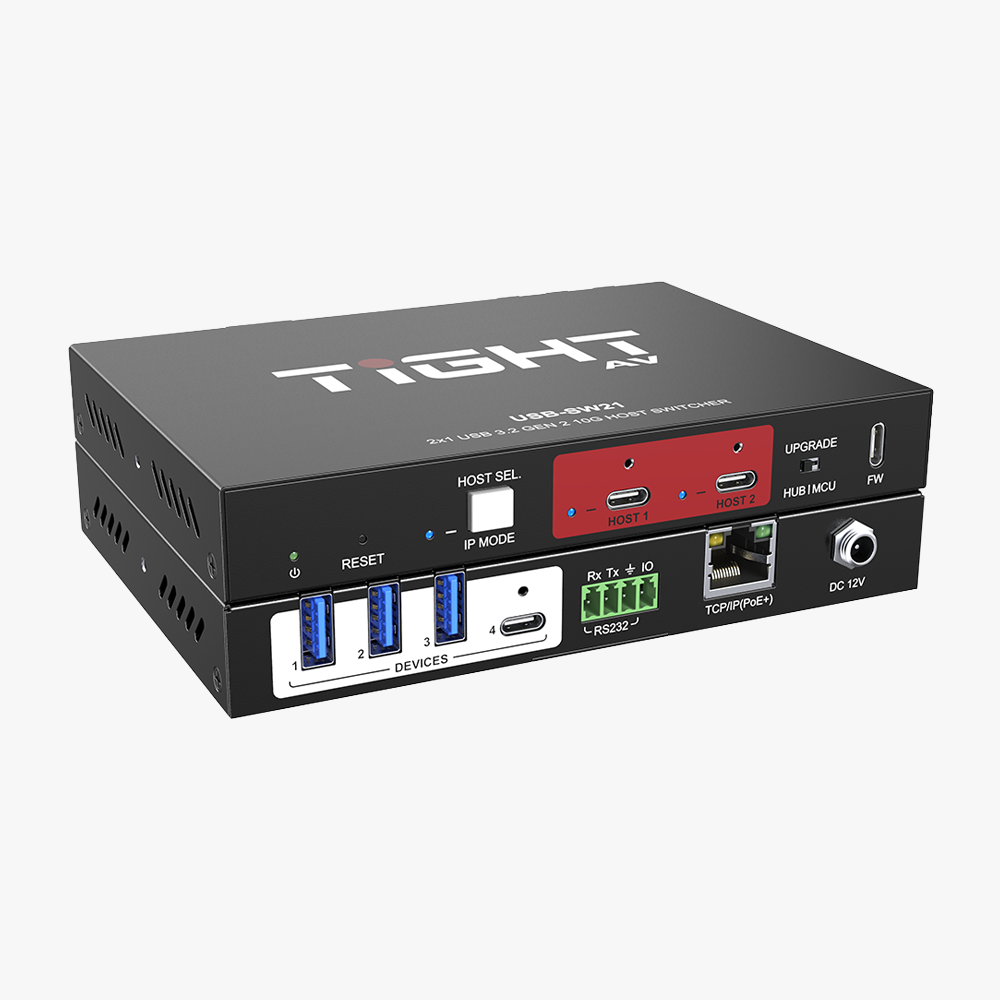

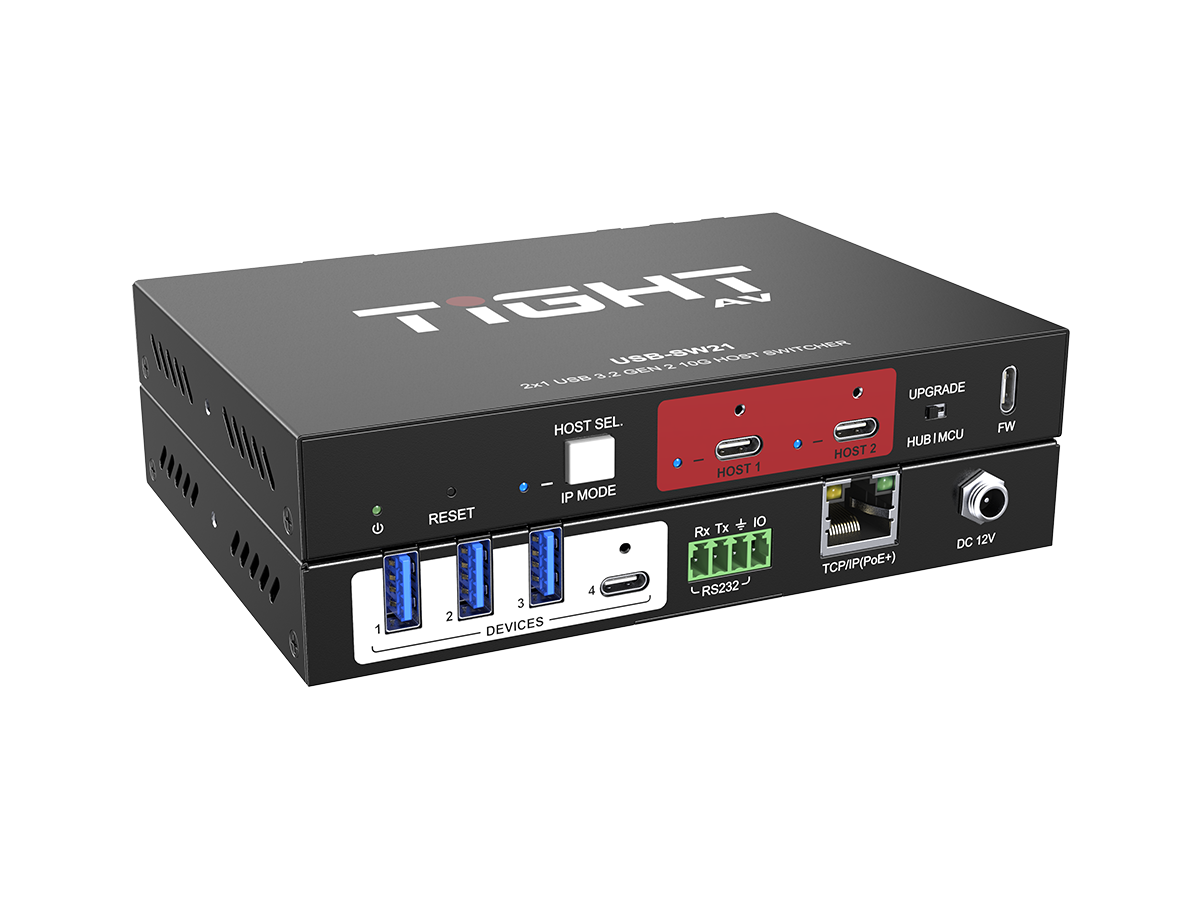

USB 3.2 10G HOST SWITCHER - Tight AV USB-SW21

High-performance dual input USB switcher with 10 Gbps support

Overview
The USB-SW21 is a switcher that allows two USB host devices to share a single USB 3.2 / 10G peripheral. It enables seamless switching between computers or sources to one high-speed device, such as a storage drive, audio interface, or video capture device.

Description
This USB switcher supports full 10 Gbps data rates and is fully backward compatible with USB 3.2 and earlier standards. It handles automatic switching as well as manual selection via front panel or remote control. The device ensures robust signal integrity for demanding tasks such as high-resolution data transfer, streaming, or recording. With a compact form factor and silent operation, it is suited for professional AV and IT environments.

Key Features
Supports 10 Gbps data throughput
Compatibility with USB 3.2, 3.1, 3.0, 2.0
Dual host input to single device output
Automatic and manual switching modes
High signal integrity and robust performance

Technical Specifications

Model: USB-SW21
Topology: 2×1 (two hosts to one device)
Interface Standard: USB 3.2 / 10G
Backward Compatibility: USB 3.1, USB 3.0, USB 2.0
Switching Method: Manual and automatic
Signal Integrity: Supports full bandwidth at maximum specification
Operating Temperature: 0 °C to 45 °C
Storage Temperature: –20 °C to 70 °C
Power Supply: 12 V DC
Consumption: ≤ 5 W (estimated)
Dimensions: Approx. 160 × 80 × 25 mm
Weight: Approx. 0.5 kg

Typical Applications
Sharing high-speed USB peripherals (SSDs, interfaces, capture devices) between two computers
AV and broadcast setups where switching between sources is needed
IT environments requiring flexible device access
