USB-C To 18G HDMI2.0 Converter – Tight AV VC-C101U-ETH

USB-C to 18G HDMI 2.0 converter with USB hub and Gigabit Ethernet

Overview
This converter transforms a USB-C video source supporting DisplayPort Alt Mode into HDMI output, while also offering USB data ports and Ethernet pass-through. It is a versatile dock for AV and conferencing use, integrating video, peripheral connectivity and network in one compact unit.

Description
The VC-C101U-ETH supports DisplayPort Alt Mode input up to 4K at 60 Hz (4:4:4) and outputs via HDMI 2.0 with the same specification. It includes three USB 3.2 Gen1 device ports for peripherals and a Gigabit Ethernet port. The USB-C port supports up to 100 W Power Delivery. The converter is plug-and-play, with no driver needed. It operates in ambient temperatures from –10 °C to +55 °C and is suitable for standard AV installations.

Key Features
Supports 4K @ 60 Hz input and output
HDCP 2.3 compliance
Three USB 3.2 Gen1 downstream ports
Gigabit Ethernet pass-through
USB-C Power Delivery up to 100 W
Plug-and-play, no drivers required

Technical Specifications

Model: VC-C101U-ETH
Video Input: USB-C (DP Alt Mode)
Video Output: HDMI 2.0
Input Resolution: Up to 4K @ 60 Hz (4:4:4)
HDMI Output: 4K @ 60 Hz (4:4:4)
HDCP Version: 2.3 / 1.x

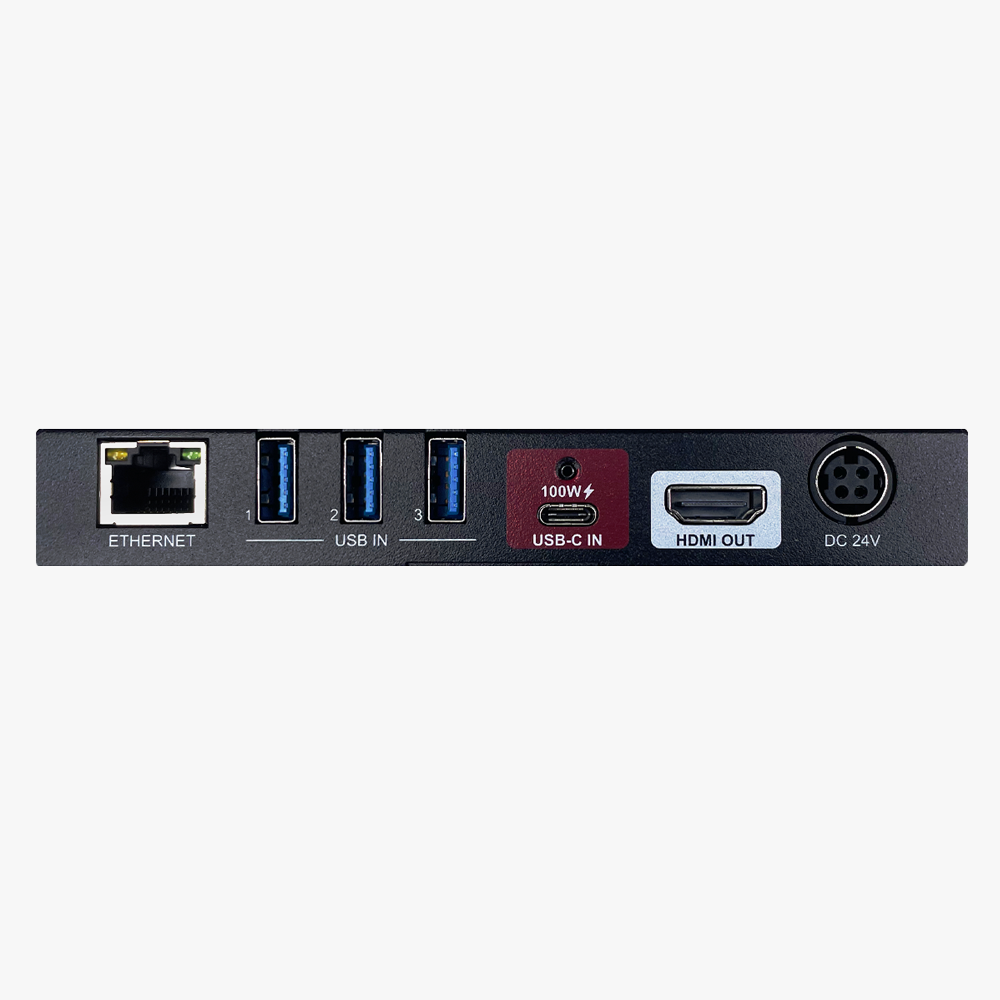

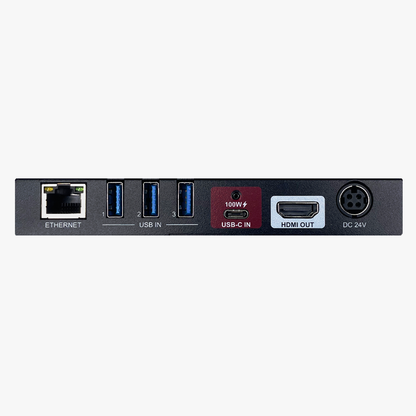

USB Ports: 3 × USB-A (USB 3.2 Gen1), 1 × USB-C (host)
Ethernet: 10/100/1000Base-T
Power Delivery: Up to 100 W via USB-C
Operating Temperature: –10 to +55 °C
Storage Temperature: –25 to +70 °C
Dimensions: 145 × 22 × 80 mm
Net Weight: 290 g

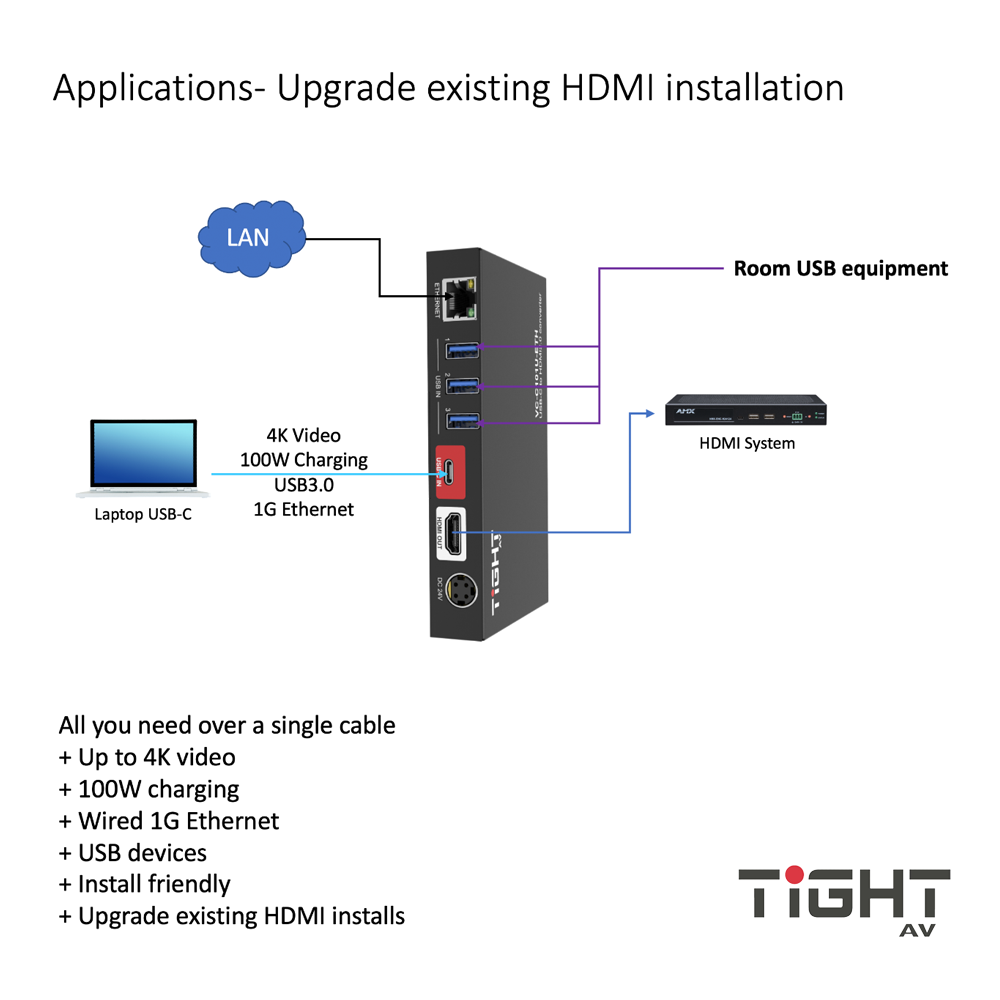

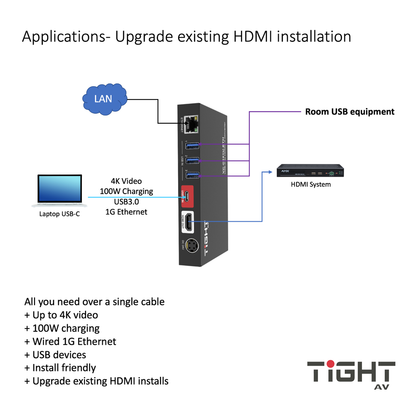

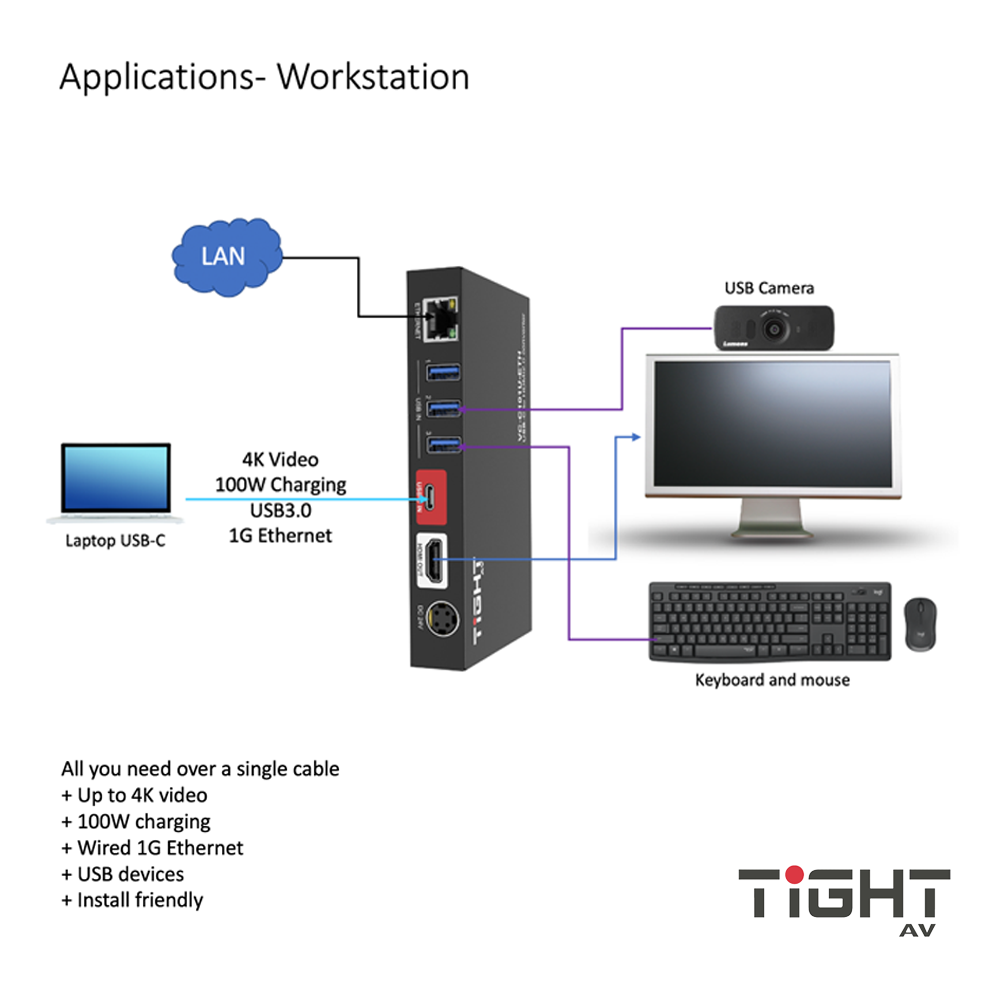

Typical Applications
Integrates USB-C devices into HDMI displays and AV systems
Used in meeting rooms, workstations, and conference setups where video, USB peripherals and Ethernet need to converge
