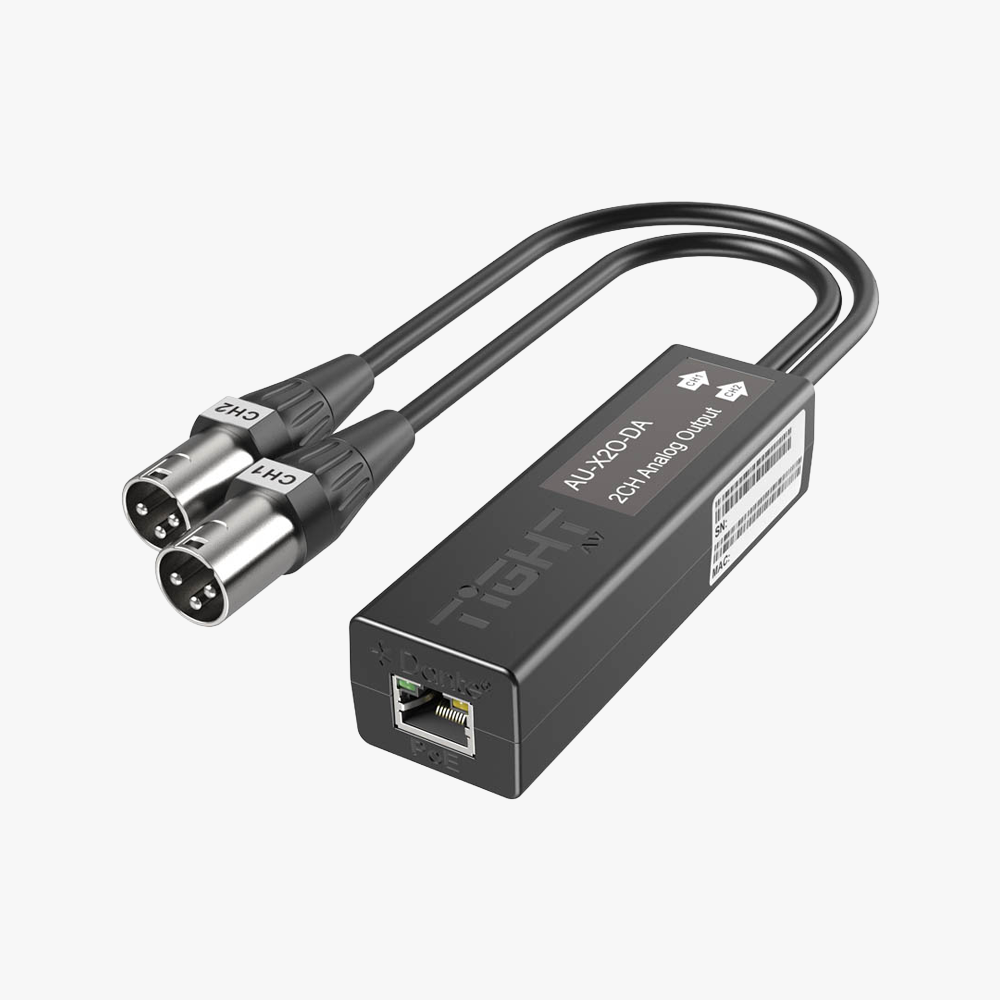

Dante 2-Channel XLR Output Adapter – Tight AV AU-X2O-DA

Plug-and-play Dante interface that converts two Dante channels to balanced analog XLR outputs

Overview
The AU-X2O-DA outputs two channels of analog line-level audio from a Dante network, supporting sampling rates up to 96 kHz. Designed for simplicity and integration, it features PoE power and dual XLR male connectors for connecting to amplifiers, mixers, or other analog equipment.

Description
This adapter sits at the edge of a Dante network and provides two balanced analog outputs via standard XLR male connectors. It supports 24-bit audio, Dante and AES67 protocols, and latency that is configurable at 1 ms, 2 ms, or 5 ms. The device is powered via 802.3af PoE and has a maximum power consumption of around 2.6 W. Its operational temperature range is −5 °C to +55 °C. The unit’s dimensions are compact at 30 × 28 × 114 mm, and it weighs approximately 145 g, making it unobtrusive in installations.

Key Features
Provides two channels of analog output from a Dante network
Supports 24-bit, 44.1 / 48 / 96 kHz audio
Configurable latency (1 / 2 / 5 ms)
Balanced XLR male outputs
Dante and AES67 compatible
Powered by PoE (802.3af)
Compact size and lightweight for easy integration

Technical Specifications

Model: AU-X2O-DA
Max Signal Level: +18 dBu / +4 dBu / 0 dBu / 0 dBV / –10 dBV
Frequency Response: 20 Hz–20 kHz (±0.5 dB)
Impedance: 150 Ω balanced / 75 Ω unbalanced
Dynamic Range: > 100 dB
Signal-to-Noise Ratio: > 100 dB
Total Harmonic Distortion (THD): < 0.01 % @ +4 dBu
Sample Rates Supported: 44.1 / 48 / 96 kHz
Bit Depth: 24 bit
Latency: 1 / 2 / 5 ms (configurable)
Network Support: Dante, AES67 over IP
Inputs / Outputs: 2 × XLR male (analog output)
Power: PoE 802.3af
Max Power Consumption: 2.6 W
Operating Temperature: –5 to +55 °C
Storage Temperature: –25 to +70 °C
Dimensions: 30 × 28 × 114 mm
Weight: ~145 g
Compliance: FCC, CE, RoHS, WEEE

Typical Applications
Use in audio systems where Dante network audio needs to be converted to analog for legacy equipment
Ideal for installations feeding amplifiers, powered speakers, or mixing consoles
Perfect in fixed AV systems, broadcast and live environments
