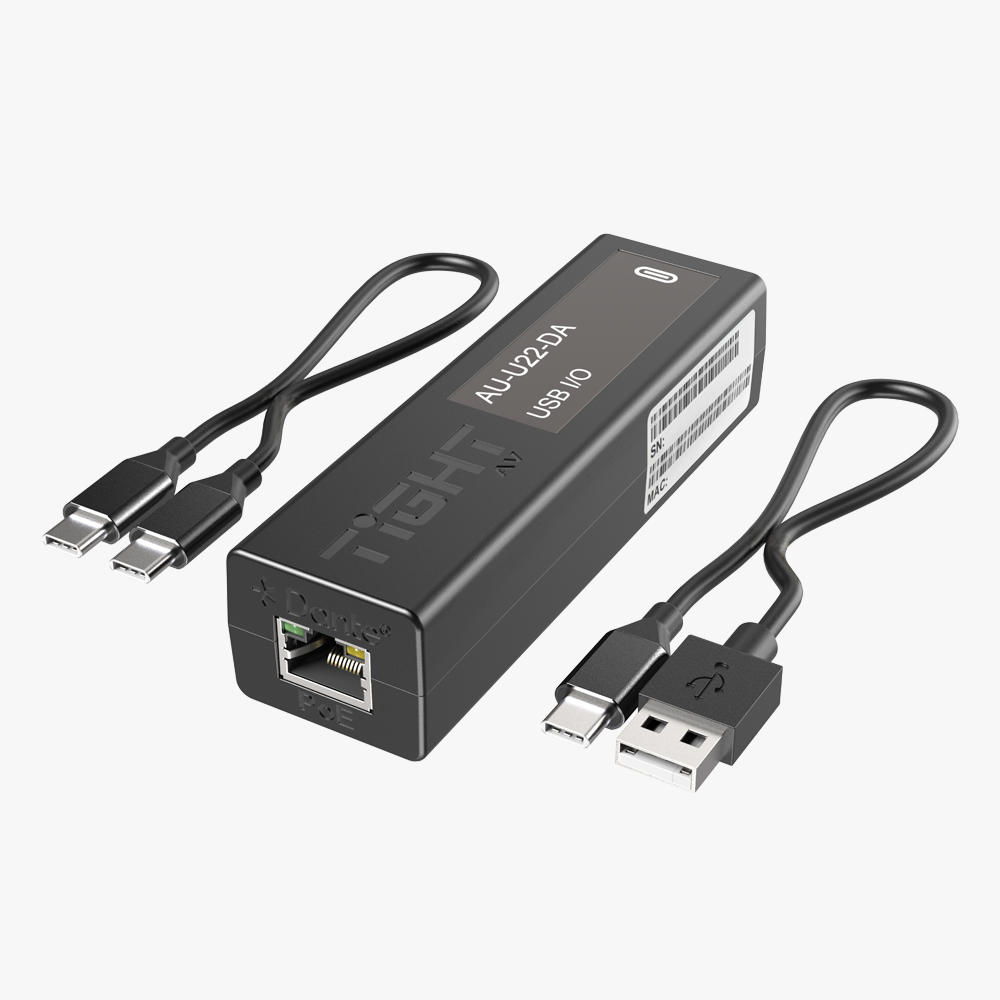

Dante 2×2 USB Adapter - Tight AV AU-U22-DA

Dante network audio interface with two-way USB connectivity

Overview
The Dante 2×2 USB Adapter enables integration between a Dante audio network and a computer via USB. It provides two channels of Dante audio into the computer and two channels back out, acting as a bridge for DAW, conferencing software or recording systems. It supports full-duplex operation, low latency, and seamless synchronization with Dante clocking.

Description
This adapter connects to a computer’s USB 2.0 port (also backward compatible with USB 1.1) and presents itself as a 2-in/2-out audio interface. On the network side, it maps those channels to/from Dante streams with support for 24-bit audio at 48 kHz. Latency can be set (for example 1 ms, 2 ms, 5 ms) depending on network conditions. It is powered via PoE (802.3af) and typically consumes around 3 W. Operating range is standard –5 °C to +55 °C; storage from –25 °C to +70 °C. Its compact form factor and light weight allow it to be placed in racks or near end devices without visual disruption.

Key Features
Provides 2-channel Dante to USB and USB to Dante audio
Supports 48 kHz, 24-bit operation
Low-latency digital audio bridge
Full-duplex USB interface
Powered by PoE (802.3af)
Compact, silent, and unobtrusive

Technical Specifications

Model: Dante 2×2 USB Adapter
Audio Channels: 2 in / 2 out (USB ↔ Dante)
Sample Rate: 48 kHz
Bit Depth: 24 bit
Latency: Configurable (for instance 1 / 2 / 5 ms)
USB Interface: USB 2.0 (backward compatible)
Network Protocols: Dante, AES67
Power: PoE 802.3af
Max Power Consumption: approx. 3 W
Operating Temperature: –5 to +55 °C
Storage Temperature: –25 to +70 °C
Dimensions: approx. 115 × 34 × 28 mm
Weight: approx. 80 g

Typical Applications
Use with computers for recording or playback into a Dante audio network
Enable conferencing PC audio over Dante
Integrate DAW or software-based systems into AV networks
