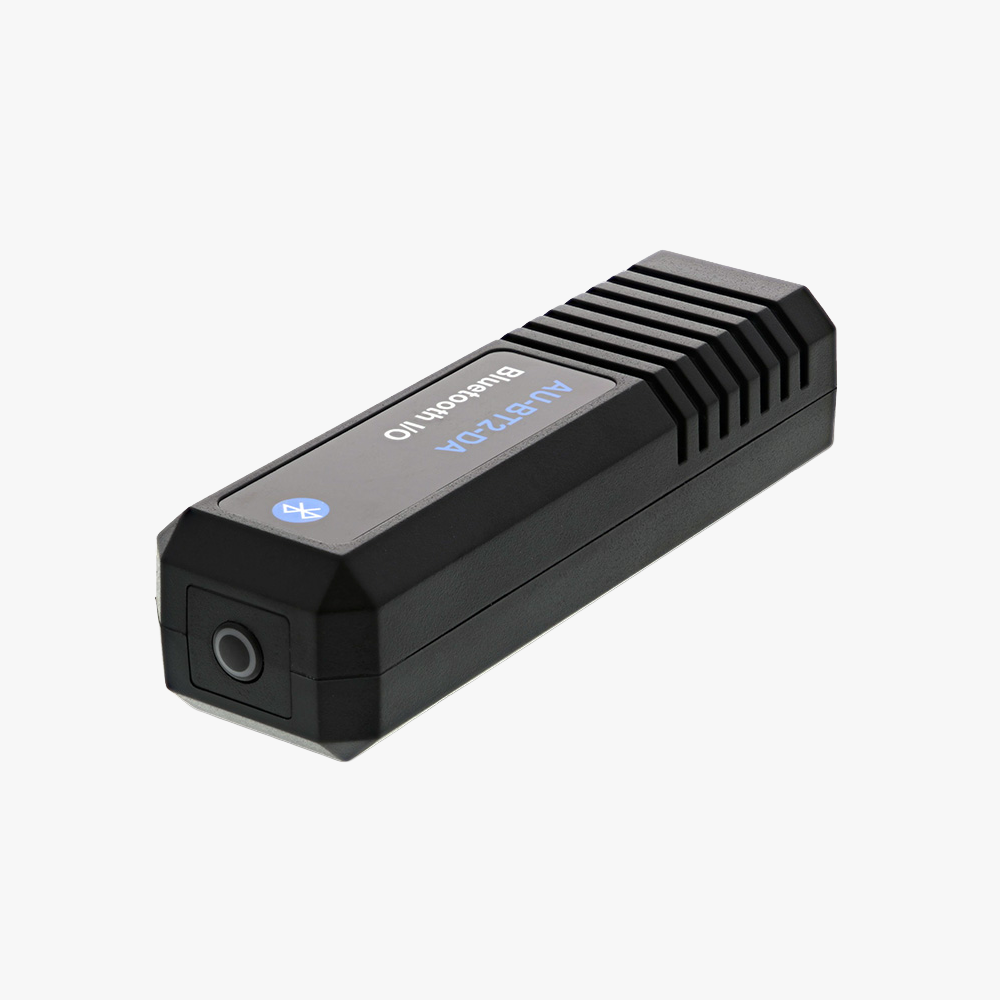

Dante 2×1 Bluetooth Adapter – Tight AV AU-BT2-DA

Allows wireless Bluetooth audio integration into and from Dante networks

Overview
The AU-BT2-DA serves as a bridge between Bluetooth devices and Dante networks, transmitting two channels of Bluetooth audio into the Dante domain and receiving one channel back to Bluetooth. It is powered via PoE and supports plug-and-play operation.

Description
This adapter is ideal for environments where wireless devices (smartphones, tablets, laptops) need to interface with a Dante audio setup without physical wiring. Equipped with Bluetooth 5.0, the unit supports Bluetooth line-of-sight distances up to 20 meters. Sample rate is 48 kHz and bit depth 24 bit. Latency can be set via Dante Controller to 1, 2 or 5 ms. Dante and AES67 protocols are supported. The device draws power using standard 802.3af PoE and offers low power consumption (~1.9 W). Operating temperature is –5 °C to +55 °C. Its compact form factor (115 × 34 × 28 mm) and light weight (≈ 70 g) make it easy to integrate into AV racks or installations.

Key Features
Bridge Bluetooth devices to Dante with two transmit channels and one receive
Supports 24-bit audio at 48 kHz
Configurable latency: 1, 2, or 5 ms
Bluetooth 5.0 with up to 20 m range (line of sight)
Supports Dante and AES67 network audio
Powered via PoE (802.3af)
Compact and lightweight for flexible installation

Technical Specifications

Model: AU-BT2-DA
Audio Channels: 2→1 (Bluetooth to Dante, Dante to Bluetooth)
Sample Rate: 48 kHz
Bit Depth: 24 bit
Latency (configurable): 1 / 2 / 5 ms
Bluetooth Version: 5.0
Maximum Bluetooth Range: ~20 m (line of sight)
Network Protocols: Dante, AES67
Power: PoE 802.3af
Max Power Consumption: ~1.9 W
Operating Temperature: –5 to +55 °C
Storage Temperature: –25 to +70 °C
Dimensions: 115 × 34 × 28 mm
Weight: ~70 g

Typical Applications
Integrating smartphones, tablets or laptops wirelessly into Dante-based conferencing systems
Allowing mobile callers to join Dante audio streams
Flexibly adding wireless audio sources in meeting rooms, lecture halls or installations
