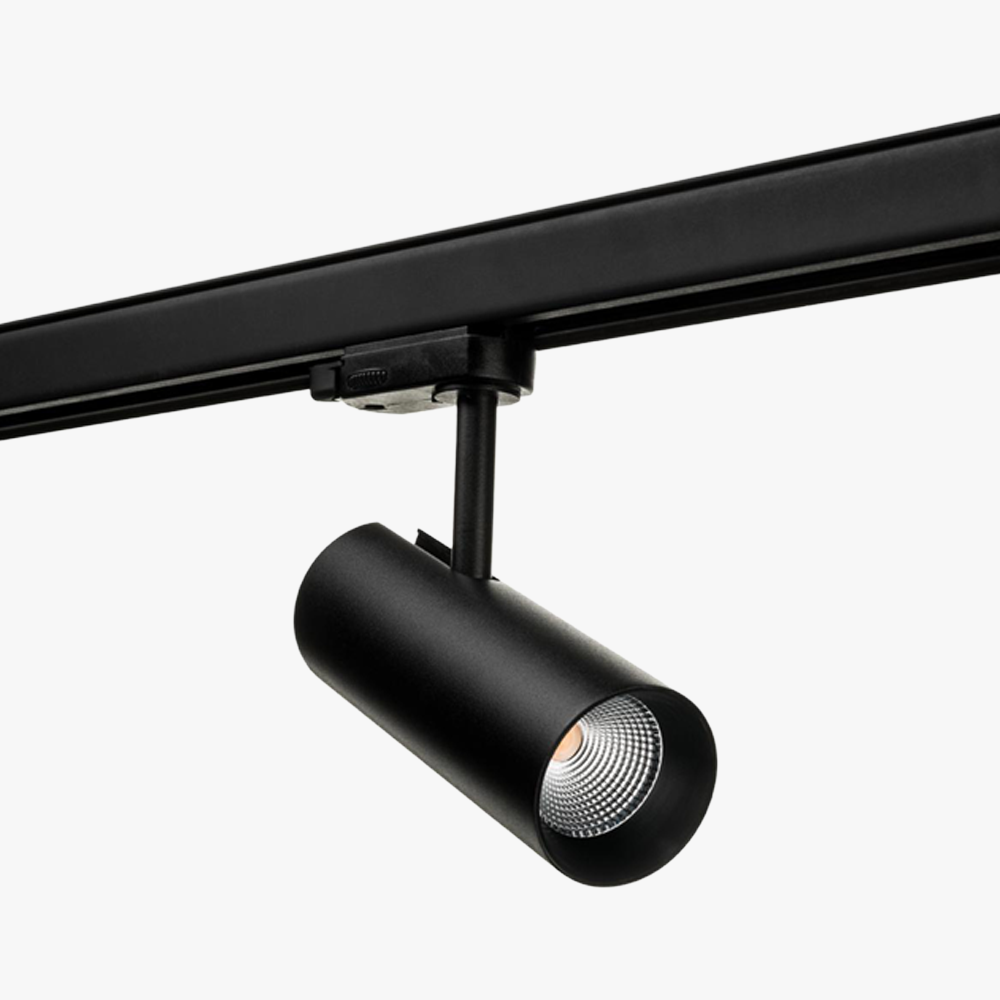

Tube Mini Spotlight 10W for 3-phase track DALI

Tube Mini DALI 3-phase is a stylish and minimalist spotlight adapted to the Shopline DALI 3-phase system. The basic version has a black baffle, but the inner ring can be unscrewed and replaced with a white or gold-coloured one (accessory). This allows for individual customisation. The black one reduces glare, the gold-coloured one gives a warmer glow and the white one reflects the most.

Technical data:

Other Pack Sizes: 1 PC/18 PCv
Max. System Power: 14 W
Nominal Luminous Flux (IEC 62722-2-1): 900 lm
Colour Temperature: 2700 K
Colour Housing/Enclosure/Body: Black
Dimming DALI: Yes
Material Housing/Enclosure/Body: Aluminum
Driver: LED driver (constant current)
Driver Included: Yes
Length: 160 mm
Light Distribution Angle: 20-40° (medium beam)
Protection Class (IP): IP20
Protection Class (IEC 61140): I
Colour Rendering Index (CRI/Ra): 90-100
Adjustability: Rotatable
Light Colour: White
Light Distribution: Symmetrical
Light Source: LED (not replaceable)
Number of poles: 3
Maintained Luminous Flux at average lifetime: 100,000 h (25 °C ambient): 90 %
Width: 59 mm
Dimming DALI-2: Yes
Failure at average service life: 100,000 hours (25 °C ambient): 10 %
Colour Fastness (McAdam ellipse): SDCM2
Height/Depth: 160 mm
Conductor Area: 2.5 mm²
Light Distributor/Diffuser: Reflector
Luminous Efficiency: 64 lm/W
Light Outlet: Direct
Suitable Number of Light Sources: 1
Suitable for Lamp Power: 14W
Suitable for Track Mounting: Yes
Suitable for Surface Mounting: Yes
Material Dome/Cover: Plastic (structured)
Max. Number of Luminaires per circuit breaker B16 (MCB): 50
Max. Number of Luminaires per C16 circuit breaker (MCB): 85
With Light Source: Yes
Rated Voltage: 220-240V
Nominal Ambient Temperature: According to IEC 62722-2-1: 25 °C
Impact Resistance (IK): IK00
Voltage Type: AC
Type of Wiring: Termination
Unified Glare Ratio (UGR): 19
Surface Protection: Powder coated
Connection Type: Track adapter
Luminous Flux: 500-999 lm
REACH Date: 2021-08-26
REACH Information requirement: No
