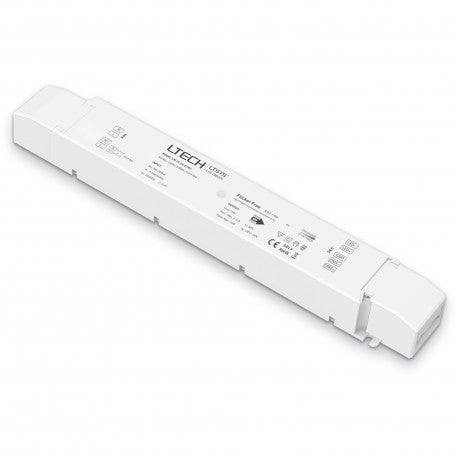

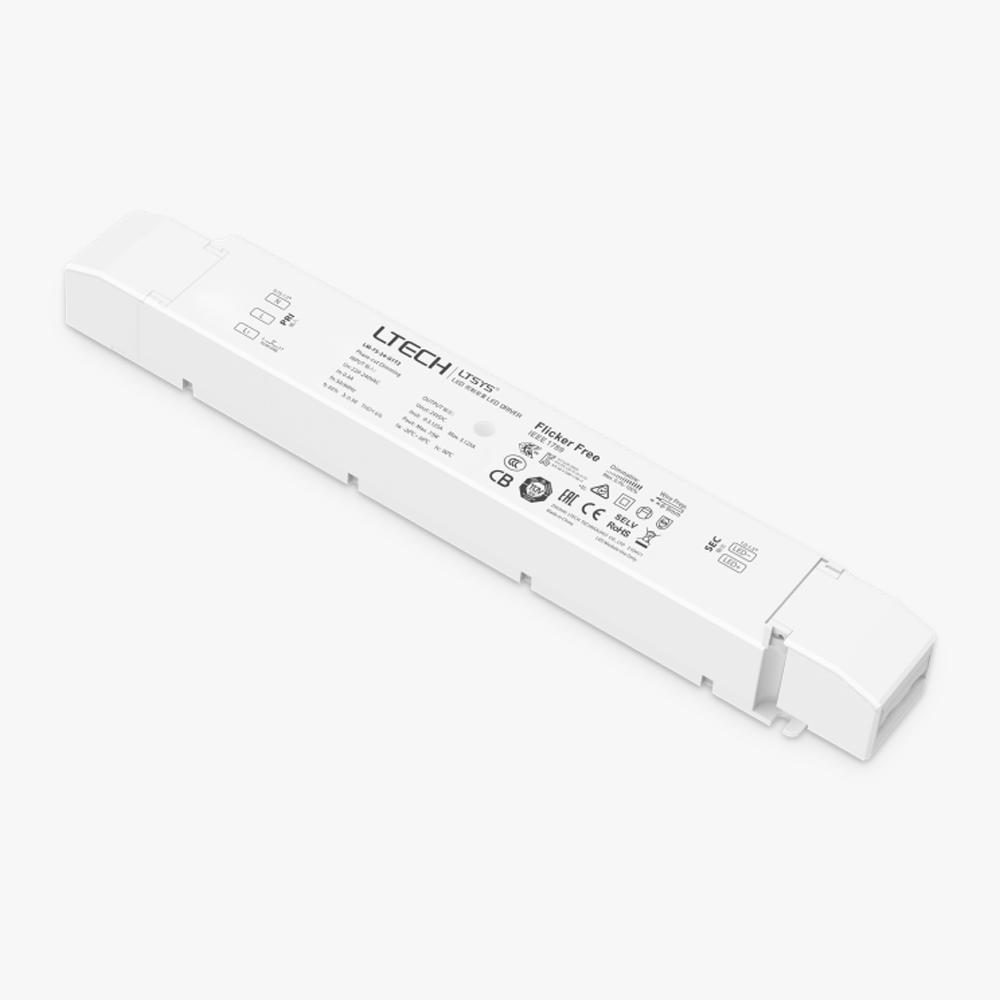

DMX LED Driver CV Dim 24V 75W , LTech

General Specifications:
Product Type: Constant Voltage Driver
Dimensions: 292 × 43 × 30 mm
Weight: 300 g
Housing: White plastic, surface-mounted
IP Rating: IP20 (indoor use only)
Country of Origin: China
ETIM Classification: EC002710 (LED Driver)

Electrical Characteristics:
Input Voltage: 200–240V AC, 60Hz
Output Voltage: 24V DC
Max Output Current: 3.125 A (3125 mA)
Output Power Range: 0–75 W
Power Factor at Full Load: ≥ 0.97 @ 230V
Efficiency: 92%
Standby Power Loss: Max 0.5 W
Leakage Current: Max 0.5 mA
Inrush Current: 30A @ 230V
Surge Protection: 2kV (L–N)
Power Supply Type: Internal
Protection Class: III

Control & Dimming:
Control Type: DMX, Push Dim
Signal: PWM-CV
RDM Support: Yes
Dimming Range: 0–100%
Number of Channels: 1

Lighting Compatibility:
Color Range: Single Color
CC / CV Type: Constant Voltage
LED Outputs: 1

Environmental:
Operating Temperature: -20°C to +50°C
Environment: Indoor

Certifications & Compliance:
Certifications: CE, UKCA, CB, TUV
EMC Directive 2014/30/EU (EN55015, EN61547, EN61000-3-2, EN61000-3-3)
RoHS Directive 2011/65/EU + 2015/863/EU
ErP Directive 2009/125/EC + (EU) 2019/2020
Low Voltage Directive 2014/35/EU (EN 61347-1, EN 61347-2-13)
