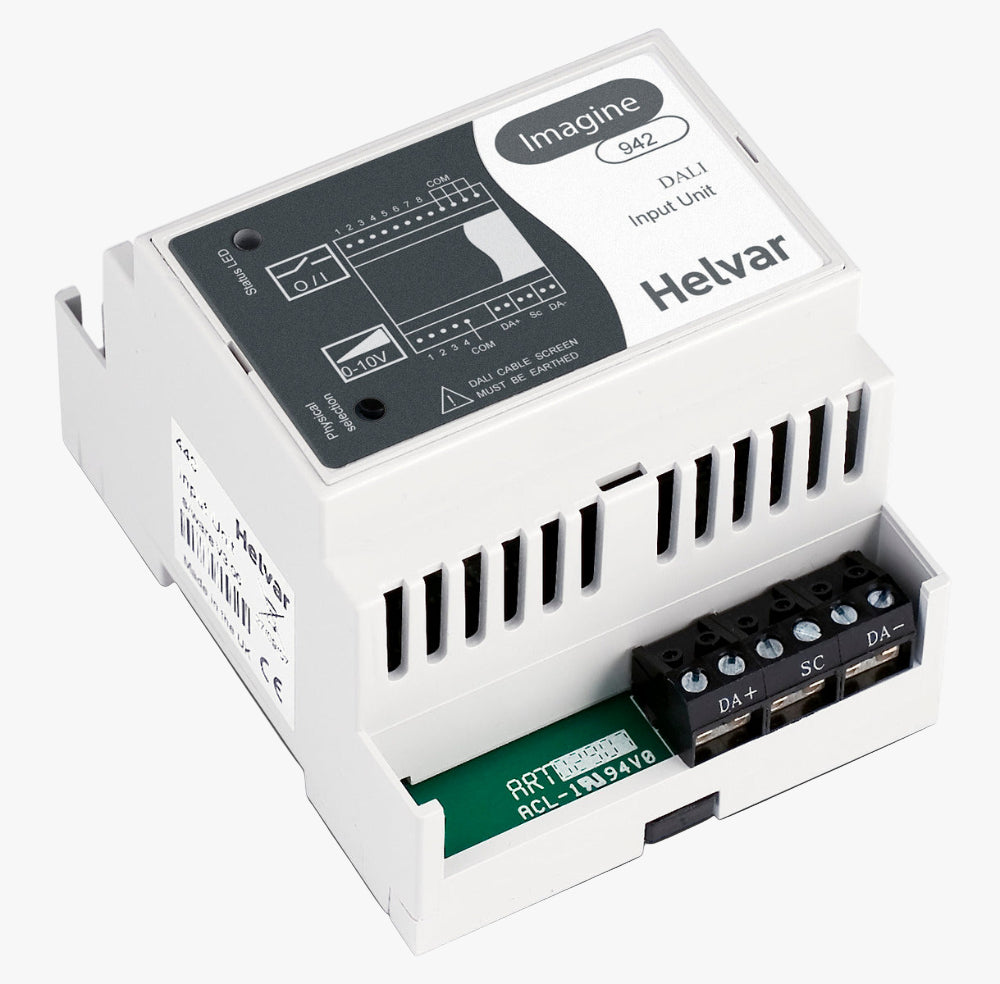

Helvar 942 Input Unit

This interface enables the integration of switches, sensors, time clocks or other on/off devices into an Imagine lighting control system — and supports 0-10 V analogue devices as well.

The Helvar 942 Input Unit is part of the Helvar Imagine / DALI system and är utformad för DIN-skenemontage, vilket gör den enkel att installera i elcentraler och styrsystem.

Lighting Control Solution: Imagine
Lighting Control Protocol: DALI lighting control
Device Mounting Method: DIN rail
Switch Inputs: 8 volt-free inputs (momentary or latching)
Analogue Inputs: Inputs 1–4 configurable as 0–10 V analogue inputs
Input Range (Analogue): 0–10 V
Power Supply: Powered from the DALI bus
DALI Current Consumption: 10 mA

Dimensions: 70 × 90 × 58 mm
Weight: 110 g
Operating Temperature: 0 °C to +40 °C
Protection / Rating: IP30, Class II
Compliance: EN 55015, EN 61547, EN 61347-2-11
