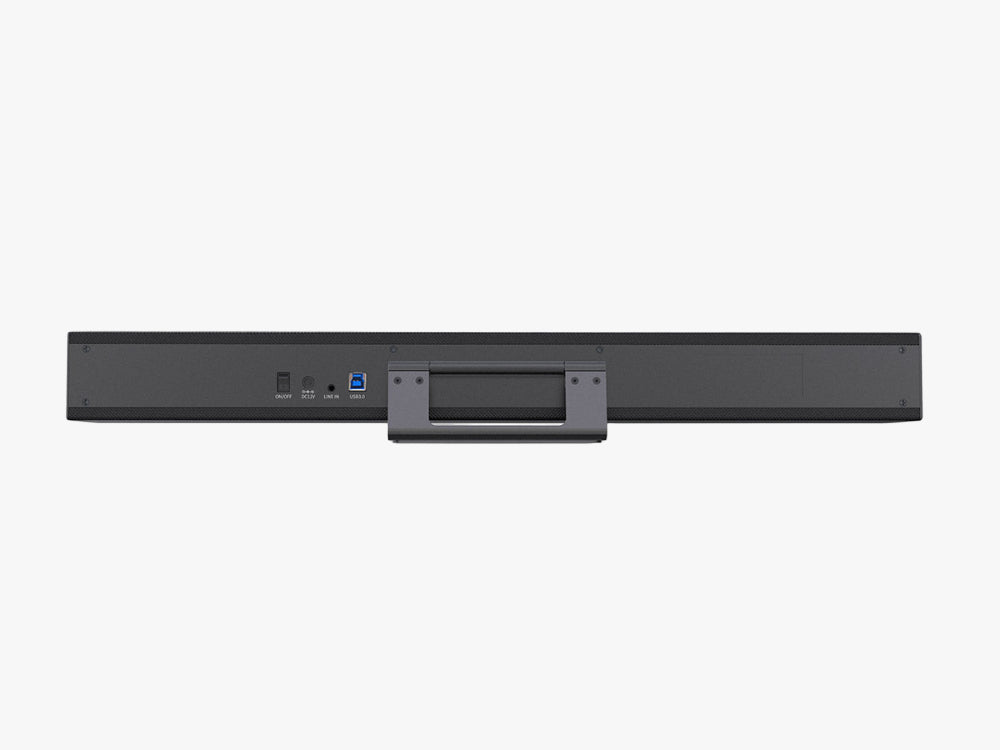

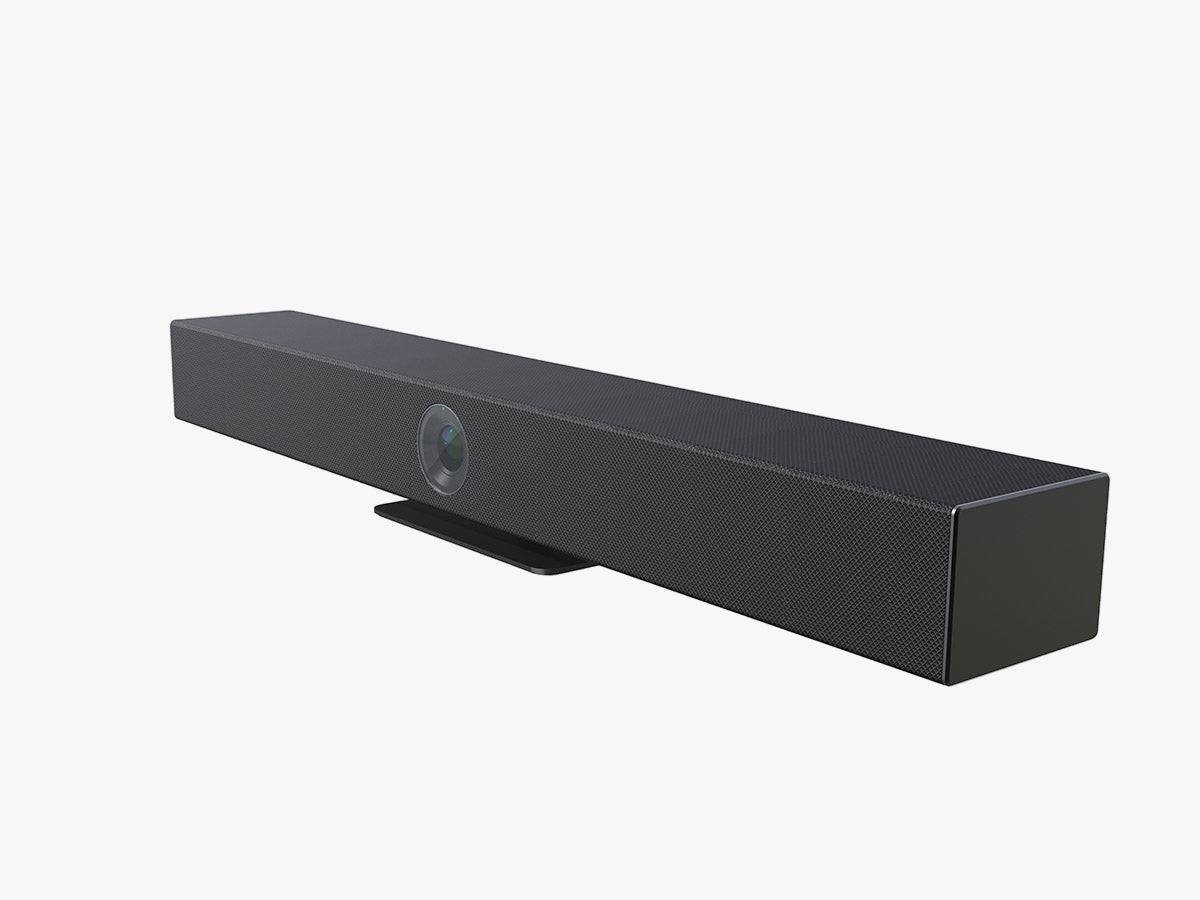

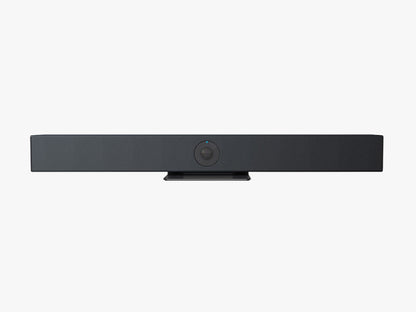

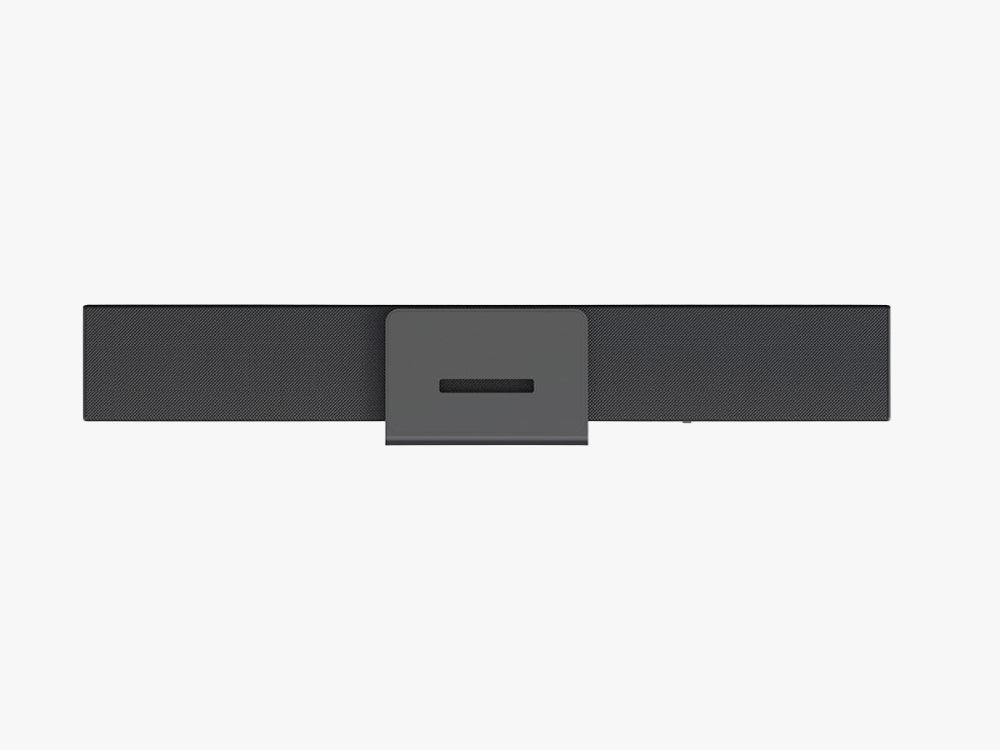

4K Video Soundbar - Tight AV VSB-600AF

All-in-one video conferencing soundbar with AEC, Auto-Framing, ePTZ, 5x zoom, 120º & 9 Presets

Overview
The TightAV VSB-600AF is a compact all-in-one video conferencing soundbar that integrates a 4K camera, microphone array, and high-quality speakers. It delivers clear video and audio performance in a single device, perfect for huddle spaces and medium-sized meeting rooms. The unit connects easily via USB and requires no additional drivers or configuration.

Description
The VSB-600AF provides 4K resolution video output at 30 frames per second and features AI-based auto framing that automatically adjusts the camera to fit participants in the frame. It is equipped with a six-element microphone array offering up to six meters of pickup range, supported by advanced processing such as Acoustic Echo Cancellation (AEC), Automatic Gain Control (AGC), and Automatic Noise Suppression (ANS).
The integrated dual 7-watt speakers provide clear and balanced sound reproduction suitable for both speech and multimedia. The device supports plug-and-play USB 3.0 connectivity, is compatible with USB 2.0, and includes a 3.5 mm audio input for external microphones. The soundbar can be wall-mounted using the included bracket or paired with an optional TV mount (model VSB-TVM).

Key Features
The system delivers true 4K UHD video at 30 fps and includes intelligent auto-framing with a six-microphone beamforming array for precise speech capture. Advanced DSP ensures echo-free and noise-free communication. The design provides effortless installation and minimal cabling, ideal for modern conference environments.

Technical Specifications

Model: VSB-600AF
Video Resolution: 4K @ 30 fps
Image Sensor: 8 MP CMOS
Field of View: 120° (D) / 108.2° (H) / 74.1° (V)
Zoom: 5× digital
Microphone Range: Up to 6 meters
Audio Processing: AEC, AGC, ANS, voice localization
Speakers: 2 × 7 W
Maximum SPL: 90 dB @ 0.5 m
USB Interface: USB 3.0 Type-B (compatible with USB 2.0)
Audio Port: 3.5 mm line-in (external mic input)
Power Supply: DC 12 V
Mounting Options: Wall bracket included, optional TV mount (VSB-TVM)
Compatibility: Works with all major video conferencing platforms

Typical Applications
The VSB-600AF is designed for video collaboration in small and medium-sized conference rooms, huddle spaces, classrooms, and offices. It is ideal for installations requiring an integrated camera, microphone, and speaker solution that minimizes setup complexity while maintaining professional audio-visual quality.
