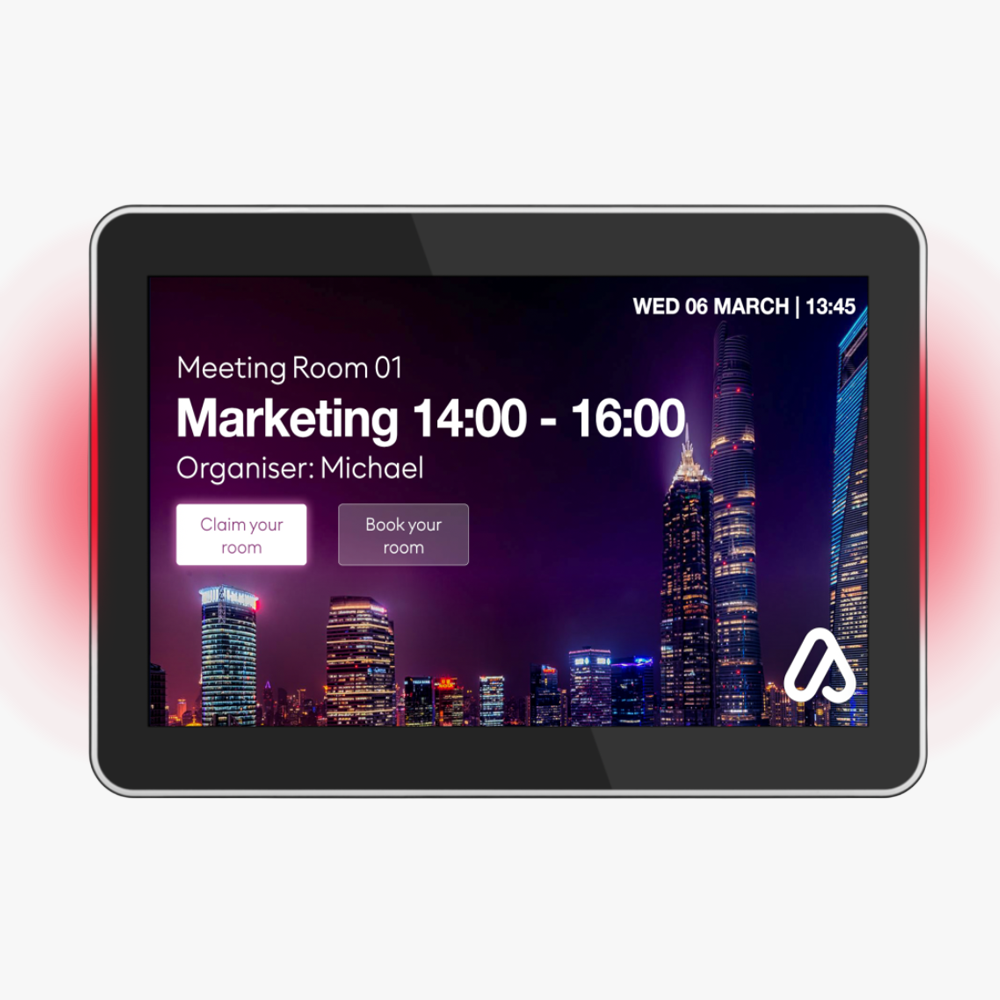

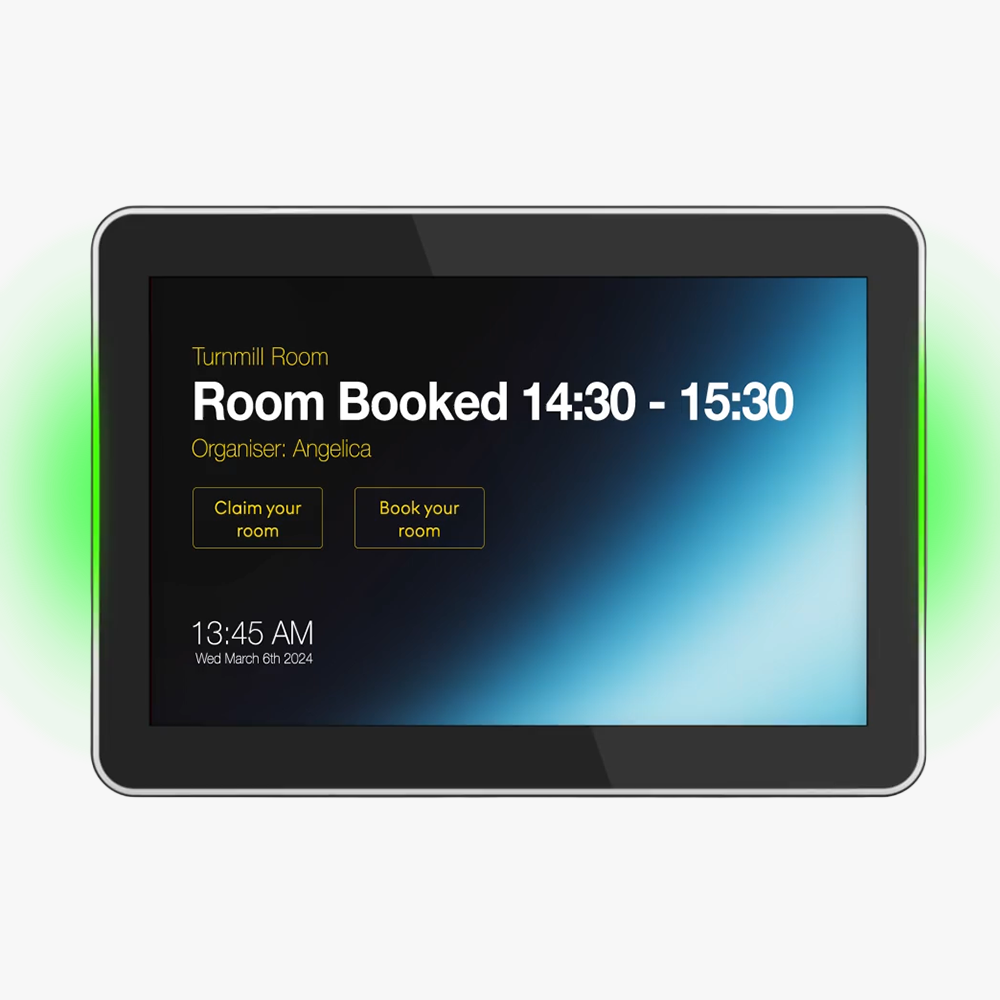

10" Conference Booking Screen PoE+ for OneDisplay

It comes with a surround RGB LED bar for efficient signalling. Enjoy hassle-free installation with the VESA mounting frame, and Power over Ethernet+ capability for efficient power provisioning. In addition, the non-glare touch panel, which supports 10-point PCAP touch functionality and high brightness.

Display
10.1" TFT LCD IPS, 1280×800 resolution (16:10)
500 cd/m² brightness, 800:1 contrast ratio
160° viewing angles (H/V), 10-point capacitive touch
Non-glare surface, supports landscape, portrait, table mode

Performance & System
CPU: RK3399 (Dual Cortex-A72 + Quad Cortex-A53)
GPU: Mali-T860MP4 (4K capable)
RAM: 4 GB DDR4, Storage: 16 GB eMMC + SD card slot
OS:Linux
Fanless design, 24/7 operation

Connectivity & I/O
HDMI output, RJ45 LAN (10/100/1000 Mbps), WiFi (802.11 a/b/g/n), Bluetooth 4.2
USB 2.0, Micro-USB, Audio out (3.5 mm), 12 V DC-in
PoE+ supported (IEEE 802.3at), NFC reader (NXP PN553)
Integrated surround RGB LED light bar

Media Support
Video: 3GP, AVI, MP4, etc.
Audio: AAC, WAV, WMA, etc.
Images: JPG, PNG, BMP, etc.
Built-in mic and stereo speakers (2×2 W)

Physical
Dimensions: 255.3 × 181 × 26.7 mm, Weight: 650 g
Housing: ABS+PC (Macrolon), VESA 75 mount
Power: 12 V / 2 A (power supply not included), 10–20 W usage
Pogo pins on 3 sides (bottom/left/right)

Environment & Reliability
Operating temp: 0–40 °C, Storage: -10–55 °C
Humidity: 10–90% non-condensing
MTBF: 45,000 hours
Clock battery: CR1220 (non-rechargeable)

Certifications
Certifications: CE, FCC, UKCA, RoHS, REACH
